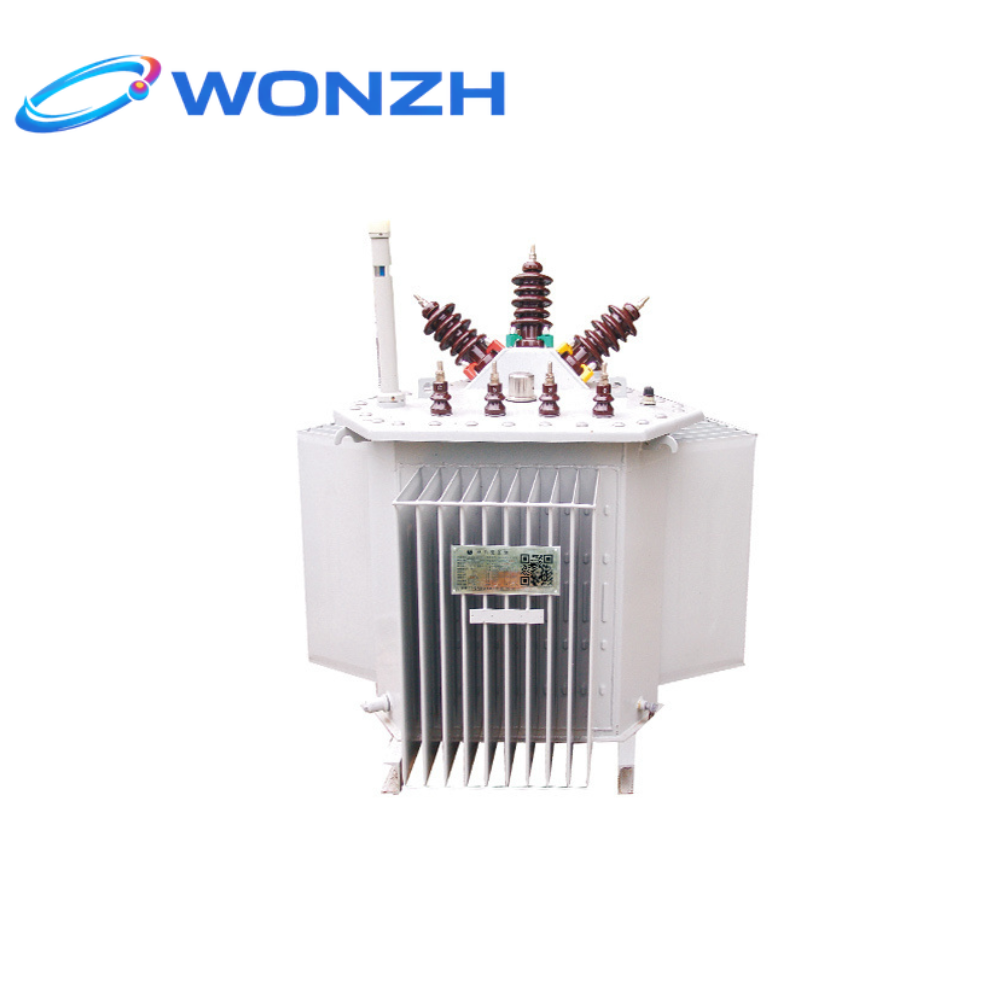

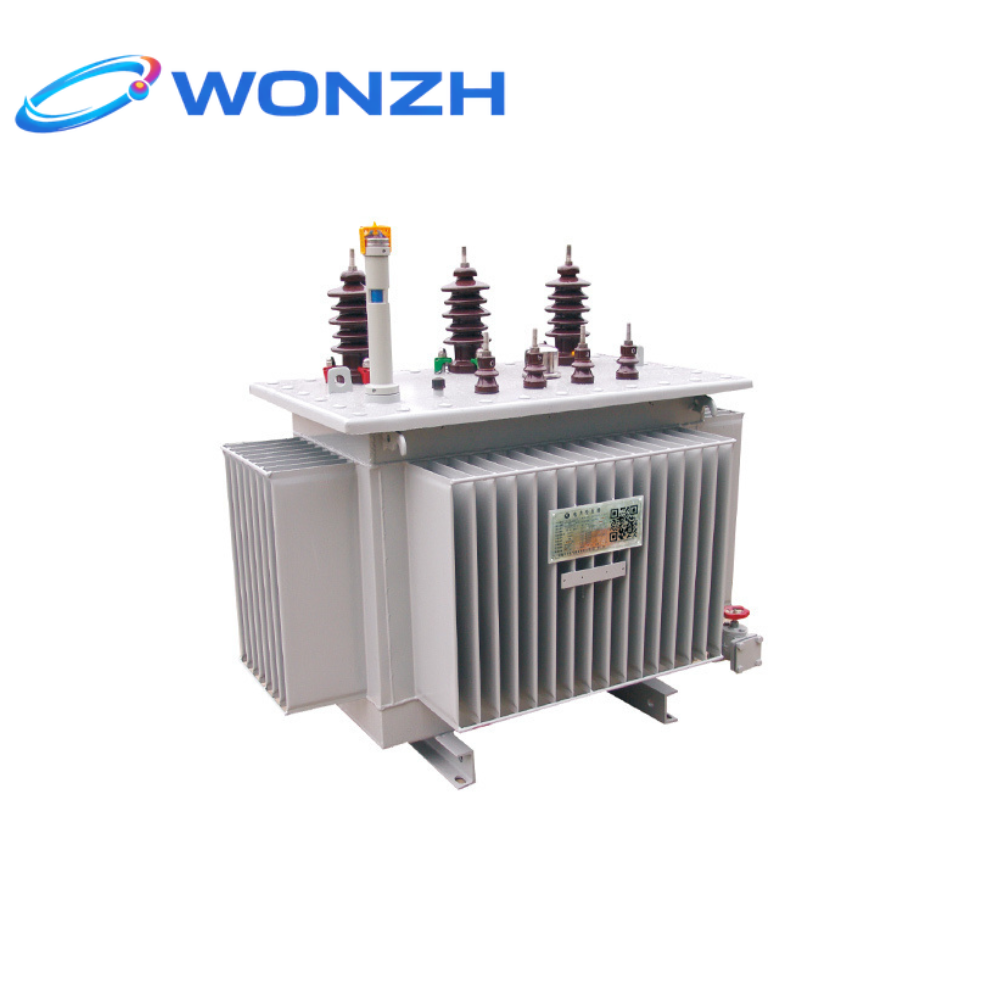

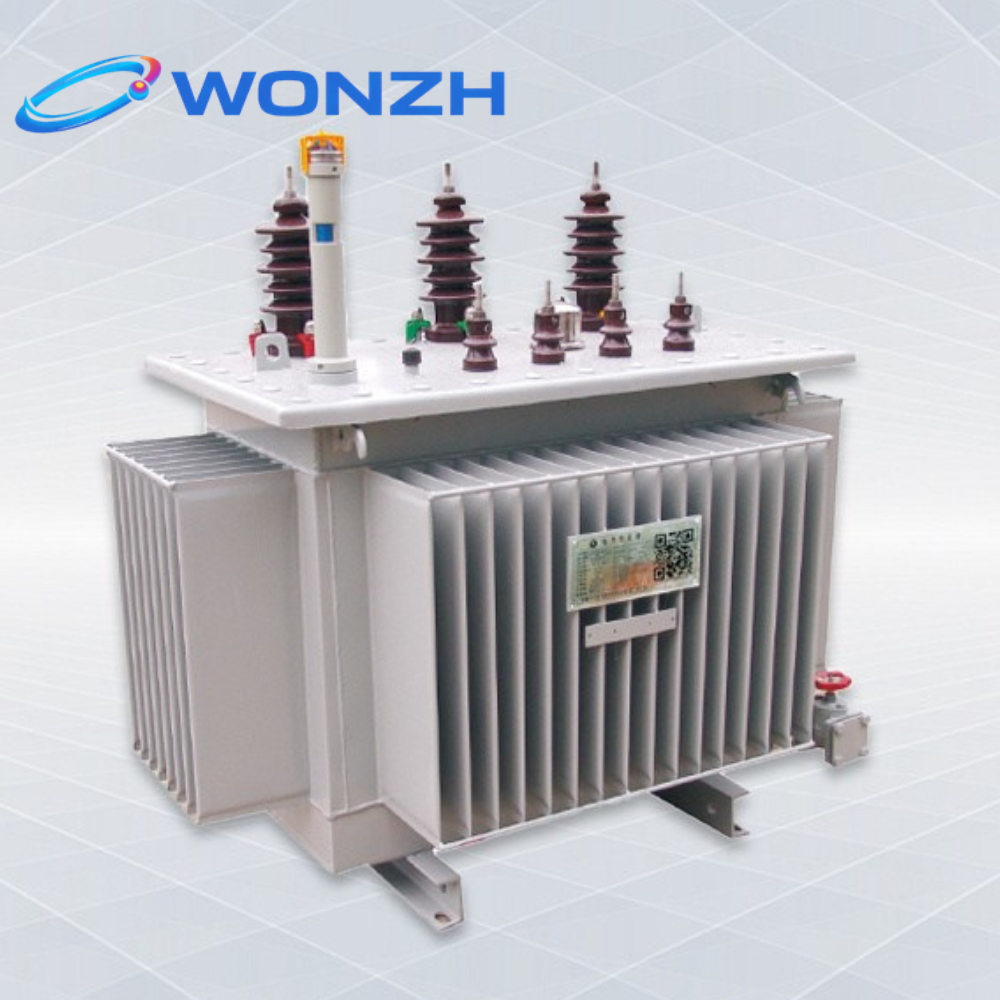

The 35kV energy-efficient oil-immersed power transformer is designed for medium-voltage power distribution systems, offering excellent performance, high reliability, and energy-saving operation.

It adopts high-quality cold-rolled grain-oriented silicon steel with a 45° fully mitered joint core structure, effectively reducing no-load loss and operating noise.

With a compact structure and advanced design, this transformer is widely used in:

• Reti elettriche urbane e rurali
• Imprese industriali e minerarie
• Power system upgrades and reconstruction
• Prefabricated compact substations

---

🔹 Conformità agli standard

This product is manufactured in strict accordance with international and national standards:

• IEC 60076-1 - Trasformatori di potenza
• GB/T 1094.1 - Trasformatori di potenza
• GB/T 6451 – Technical Parameters for Oil-Immersed Transformers
• JB/T 10088 - Livelli sonori dei trasformatori da 6kV-500kV
• GB 20052-2020 - Limiti e gradi di efficienza energetica

---

🔹 Caratteristiche principali

Alta efficienza energetica

• Advanced core design reduces no-load loss
• Meets modern energy-saving standards
• Lower lifecycle operating costs

Funzionamento a basso rumore

• Optimized magnetic circuit reduces vibration
• Suitable for urban and residential installations

✔ Reliable & Compact Design

• Space-saving structure
• Facile installazione e manutenzione
• Ideal for compact substations

✔ Strong Mechanical Strength

• High resistance to short-circuit impacts
• Stable performance under heavy load conditions

---

🔹 Progettazione strutturale

🔸 Nucleo

• High-permeability grain-oriented silicon steel
• Multi-step core structure (3-joint / 5-joint / 7-joint)
• Giunti completamente sagomati per:
  • Perdita inferiore
  • Riduzione del rumore

---

🔸 Avvolgimenti

• High-quality enameled copper conductors
• Oxygen-free copper materials
• Winding types include:
  • Cilindrico
  • Continuo
  • Elicoidale
  • Avvolgimento della pellicola

➡ Fornisce:

• Excellent electrical insulation
• Forte resistenza meccanica
• Dissipazione efficiente del calore

---

🔸 Serbatoio dell'olio

• Constructed from high-quality welded steel plates
• Tank types:
  • Oval
  • Rectangular
• Cooling options:
  • Alette del radiatore
  • Serbatoio ondulato
• Trattamento della superficie:
  • Pulizia e fosfatazione acida
  • Multi-layer anti-corrosion coating

➡ Garantisce:

• Prestazioni di tenuta affidabili
• Forte resistenza alla corrosione
• Lunga durata di vita

---

🔹 Applicazioni

• Medium-voltage power distribution systems
• Industrial plants and heavy industries
• Progetti di infrastrutture e servizi di pubblica utilità
• Renewable energy grid integration
• Prefabricated substations

---

🔹 Riepilogo dei vantaggi

• Energy-saving and eco-friendly
• Low noise and low loss
• High reliability and durability
• Suitable for modern grid systems
• Flexible customization options

---

❓ FAQ

1️⃣ What is the typical application of a 35kV oil-immersed transformer?

35kV transformers are mainly used in medium-voltage distribution networks, including:

• Industrial power supply systems
• Utility substations
• Renewable energy projects

👉 They are ideal for transmitting power over longer distances with stable performance.

---

2️⃣ Can this transformer be customized for different projects?

Yes, full customization is available:

• Rated capacity (kVA/MVA)
• Livelli di tensione (HV/LV)
• Gruppo vettoriale
• Metodo di raffreddamento
• Ambiente di installazione

👉 Custom solutions are widely applied in large-scale infrastructure projects.

---

3️⃣ How does this transformer ensure low noise operation?

The transformer uses:

• High-quality silicon steel core
• Fully mitered joint design
• Optimized magnetic circuit

👉 These features significantly reduce vibration and operational noise.

---

4️⃣ What is the delivery time for this product?

• Standard configurations: 4–6 weeks
• Customized designs: 6–10 weeks

👉 Fast delivery options are available for urgent projects.
